Project Overview
This project was delivered for a machinery manufacturing company in Malaysia, aiming to maximize storage density while maintaining stable handling of heavy pallets within a limited warehouse footprint.
- Location: Malaysia
- Industry: Machinery Manufacturing
- Warehouse Area: 544 m²
- System Type: Four-Way Radio Shuttle Racking System
- System Height: 10.5 m
- Total Storage Capacity: 1,728 pallet positions
- Pallet Load: Up to 1.5 tons per position
Customer Challenge
The customer faced several structural and operational challenges:
- High pallet weight requiring reliable load-bearing performance
- Limited warehouse area demanding high-density storage
- Tall racking structure (over 10 m) with strict stability requirements
- Floor load constraints requiring reinforcement solutions
Standard selective racking could not meet the required space utilization or long-term safety expectations.
Our Solution

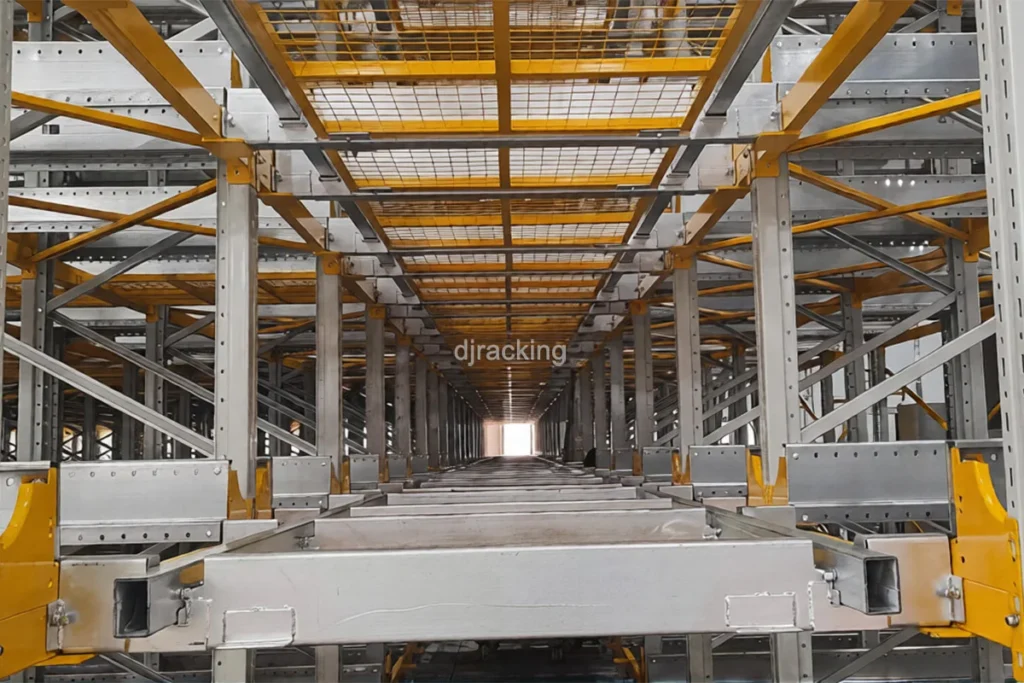

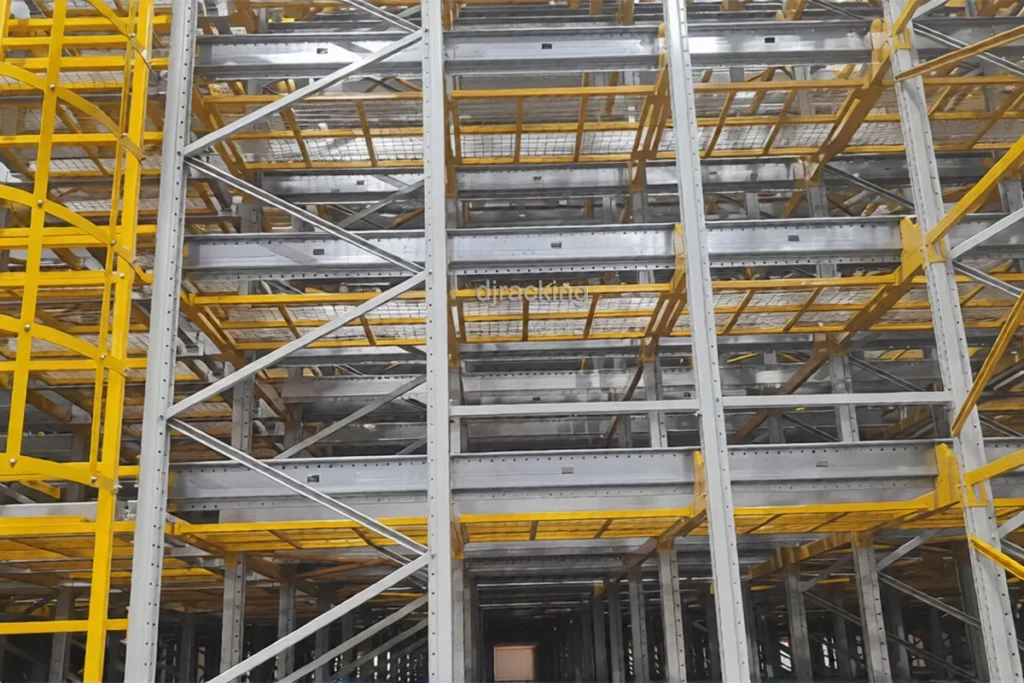

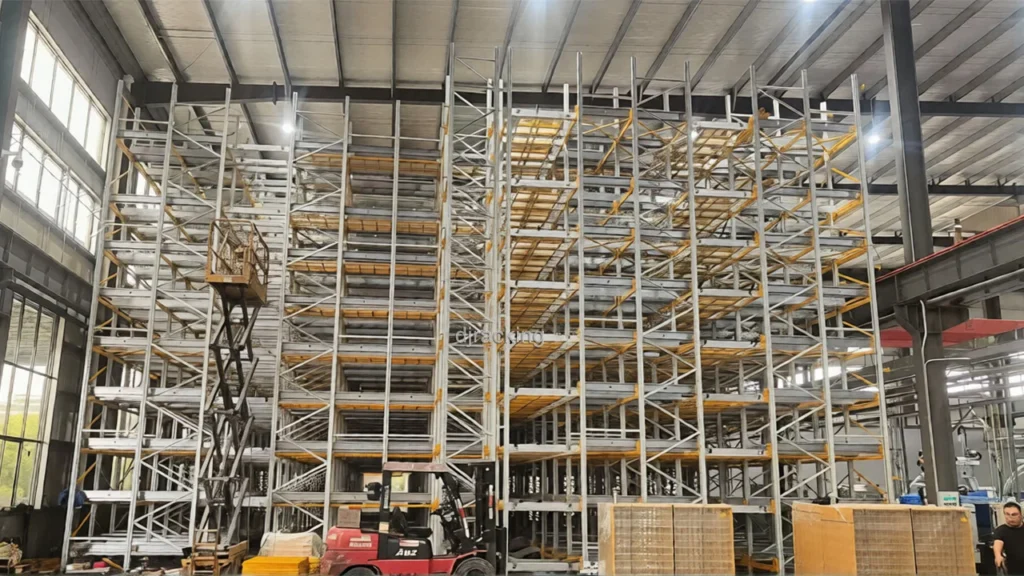

A customized four-way radio shuttle racking system was designed to address both space and load challenges.
Key solution features included:
- High-density racking structure optimized for 10.5 m height
- Four-way shuttle system enabling flexible horizontal and vertical pallet movement
- Reinforced floor solution using 20 mm steel plates to distribute concentrated loads
- System layout designed for heavy pallets up to 1.5 tons
The system allows efficient pallet handling while maintaining structural stability under high load conditions.
Key Project Highlights
- High-density storage within a compact 544 m² warehouse
- Stable operation for heavy-duty pallets up to 1.5 tons
- Improved space utilization compared to conventional racking
- Scalable layout for future automation upgrades
Results & Engineering Value
The four-way shuttle system significantly increased storage capacity without expanding the warehouse footprint.
The reinforced floor design ensured long-term operational safety, while the automated shuttle system reduced manual handling requirements and improved overall warehouse efficiency.
Why This Project Matters
This project demonstrates our capability to engineer heavy-duty, high-density storage systems for manufacturing environments where space, load, and structural safety are critical.
It reflects a practical balance between automation, cost control, and long-term operational reliability—rather than off-the-shelf racking solutions.
