Mezzanine

Structured Storage Platform Integrated with Racking

Mezzanine racking is a structural storage system that combines pallet racking or shelving with an elevated steel platform, creating additional storage levels inside an existing warehouse.

Unlike a conventional mezzanine floor, mezzanine racking uses the rack structure itself as the primary load-bearing framework, making it a more efficient solution for warehouse storage expansion.

This system is designed to increase storage capacity vertically without modifying the building structure.

Key Differences: Mezzanine Racking vs Mezzanine Floor

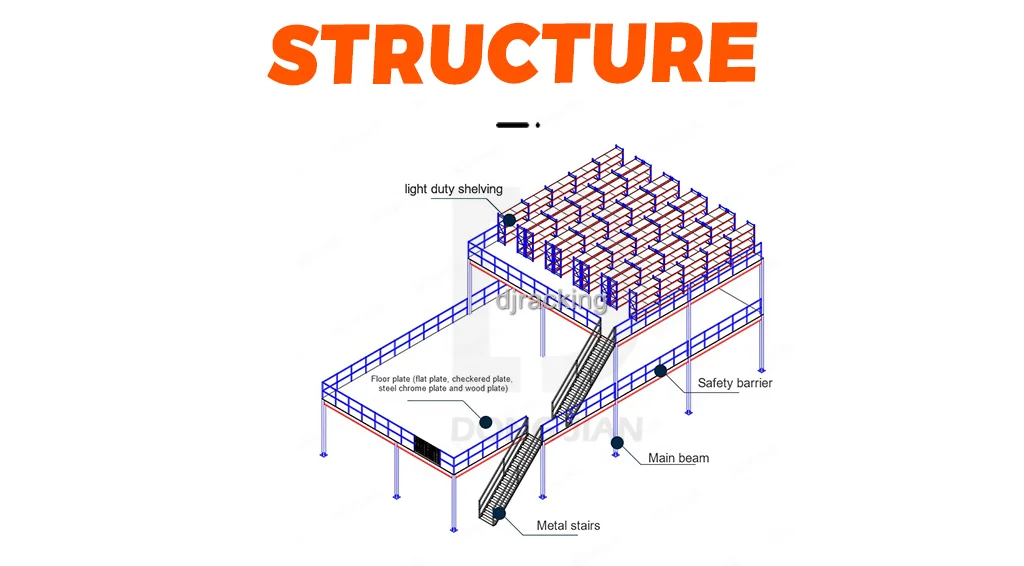

Structural System Overview

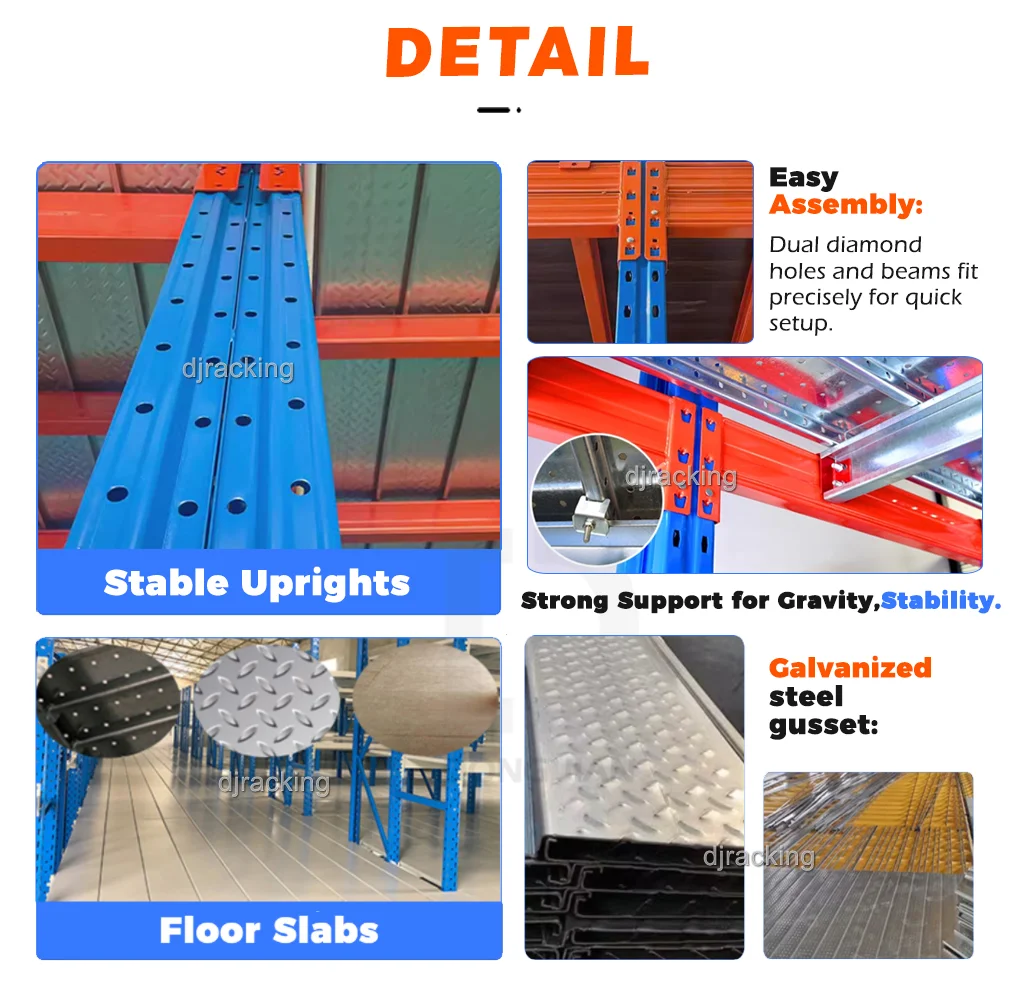

A mezzanine racking system typically includes:

• Structural rack uprights

• Steel beams supporting elevated platform

• Floor decking (steel grating / plywood / checkered plate)

• Guardrails and safety gates

• Staircases and access systems

All components are engineered according to warehouse height, load requirements, and workflow design.

Configuration Types

Single-Tier Mezzanine Racking

• One elevated level

• Suitable for medium-height warehouses

• Ideal for manual picking and light storage

Multi-Tier Mezzanine Racking

• Two or more elevated storage levels

• Designed for high-clearance facilities

• Common in e-commerce and parts distribution

Load Capacity & Engineering Design

Each mezzanine racking system is designed based on:

• Platform live load requirements

• Rack upright section strength

• Beam span calculations

• Floor deflection limits

• Local structural standards

Load capacity and structural calculations are determined per project.

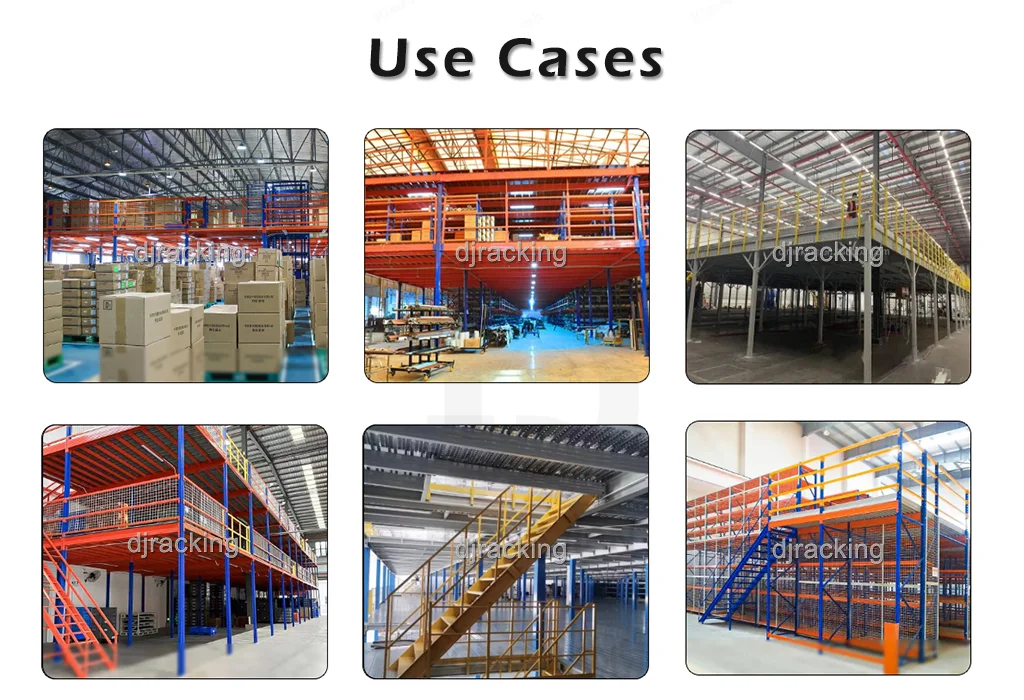

Typical Applications

Mezzanine racking systems are commonly used in:

• E-commerce fulfillment centers

• Spare parts warehouses

• Apparel and fashion distribution

• Component storage facilities

• Manual picking operations with high SKU density

When Mezzanine Racking Is the Right Solution

• Warehouse has sufficient vertical clearance

• Floor space expansion is limited

• High SKU density requires organized levels

• Fast implementation needed without building expansion

When a Traditional Mezzanine Floor May Be Better

• Heavy industrial equipment installation

• Office or workspace construction

• Large open-span structural requirements

Compliance & Safety

• Engineered structural calculations

• Anti-slip decking options

• Integrated handrails and pallet gates

• Designed to meet FEM / RMI / local codes

Project-Based Engineering Support

Each mezzanine racking system is engineered according to:

• Warehouse layout

• Load requirements

• Future expansion planning

• Fire protection and lighting integration

👉 Contact our engineering team for layout planning and system design consultation.
