Project Overview

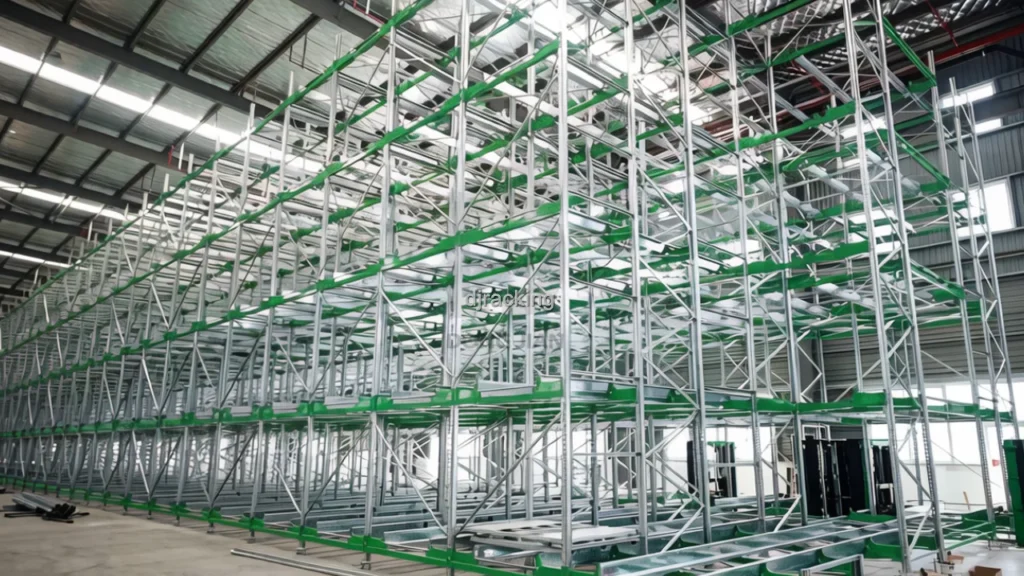

This project was delivered for an industrial storage warehouse in Saudi Arabia, where the customer required high-density storage for oversized industrial goods within a long and narrow warehouse layout.
By adopting a four-way shuttle racking system, the customer significantly improved storage density and operational efficiency without expanding the facility footprint.
Project Specifications
- Location: Saudi Arabia
- Industry: Industrial Storage / Equipment Components
- Warehouse Length: 70 m
- Warehouse Width: 10 m
- Racking Height: 8 m
- Storage Levels: 5 levels
- Total Storage Capacity: Approx. 600 positions
- Storage Position Size: 1.6 × 2.7 m
- System Type: Four-Way Shuttle Racking System
Customer Challenges
The customer faced several practical warehouse challenges:
- Large unit load dimensions requiring oversized storage positions
- Long warehouse layout reducing forklift efficiency
- Increasing inventory demand without available expansion space
- Need for faster access to heavy industrial goods
Traditional selective racking could not efficiently utilize the full warehouse length and vertical space.
Our Solution

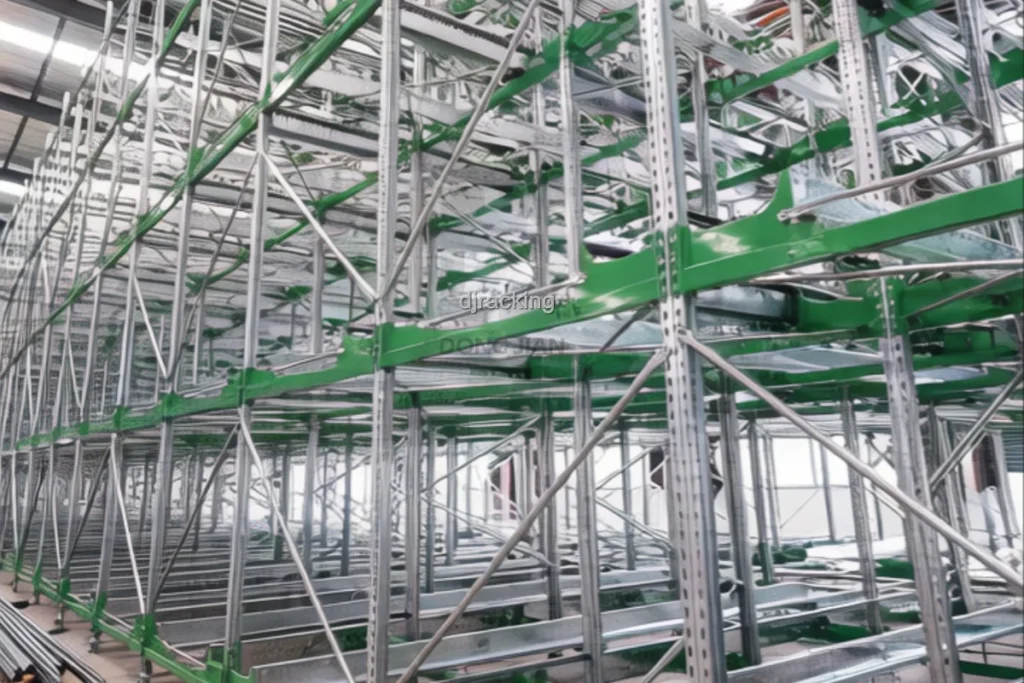

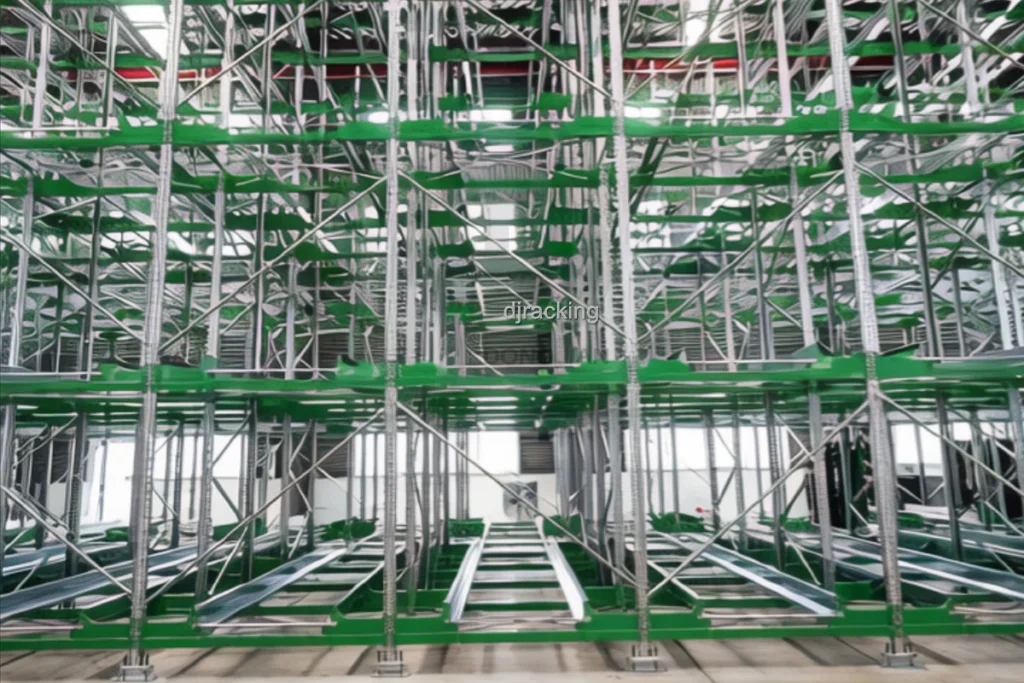

We designed a custom four-way shuttle racking system specifically optimized for the customer’s oversized load dimensions and warehouse geometry.
The shuttle system enables flexible movement in both longitudinal and lateral directions, allowing all storage positions to be accessed efficiently.
Key Design Features
- Five-level high-density rack structure
- 70-meter continuous rack layout
- Large-size storage bays for industrial goods
- Green four-way shuttle system customized for the project
- Reduced aisle space requirement
This solution maximizes storage density while improving goods handling efficiency.
Structural & Technical Design
The system was engineered to ensure stable shuttle operation across the full 70-meter rack length.
Technical Parameters
- Total height: 8 meters
- Levels: 5 levels
- Storage positions: ~600
- Position size: 1.6 × 2.7 meters
The large position dimensions make the system particularly suitable for industrial components, equipment parts, and oversized packaged materials.
Key Project Highlights
- High-density storage within a narrow 70m warehouse
- Large-size storage positions for industrial goods
- Flexible four-way shuttle movement
- Improved warehouse space utilization
- Reduced manual forklift travel distance
Results & Operational Value
After implementation, the warehouse achieved significant improvements in both capacity and efficiency.
The customer now benefits from:
- Higher storage density within the same warehouse footprint
- Faster material retrieval
- Reduced labor intensity
- Better inventory organization
The system now serves as a stable and scalable storage solution for long-term industrial operations.
Why This Project Matters
This project demonstrates our ability to deliver custom four-way shuttle systems for oversized industrial storage applications.
By combining intelligent shuttle movement with optimized rack geometry, the system provides a practical solution for warehouses where both space utilization and access efficiency are critical.
