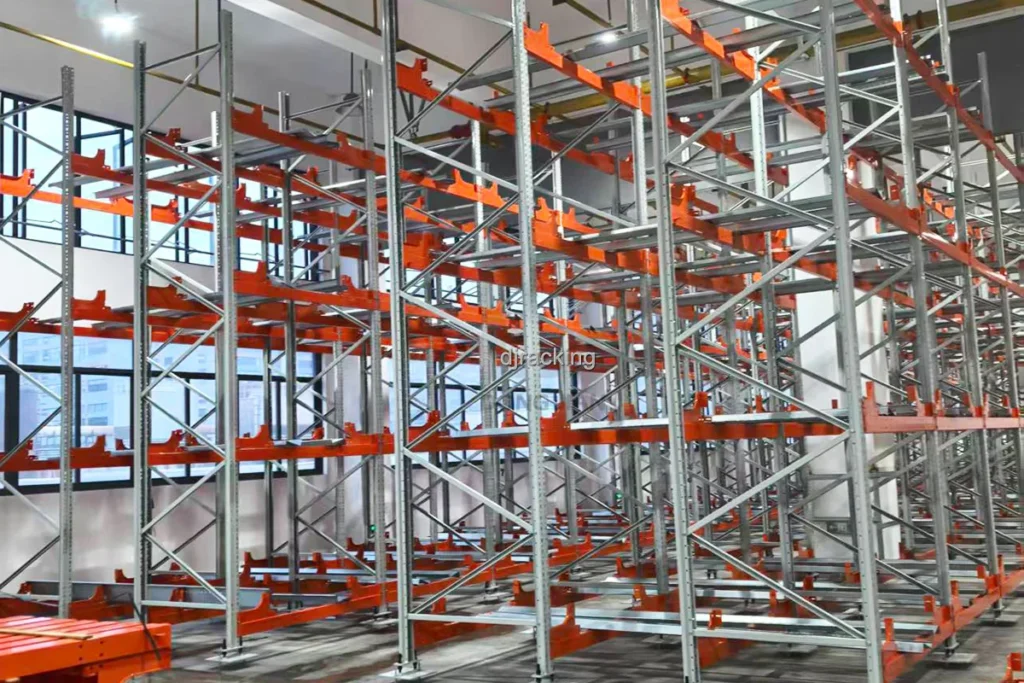

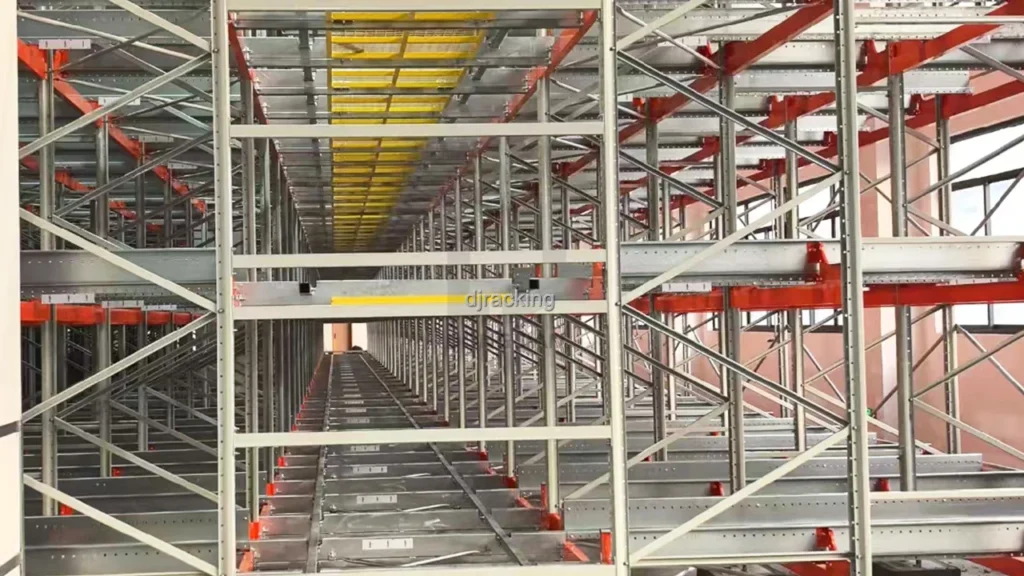

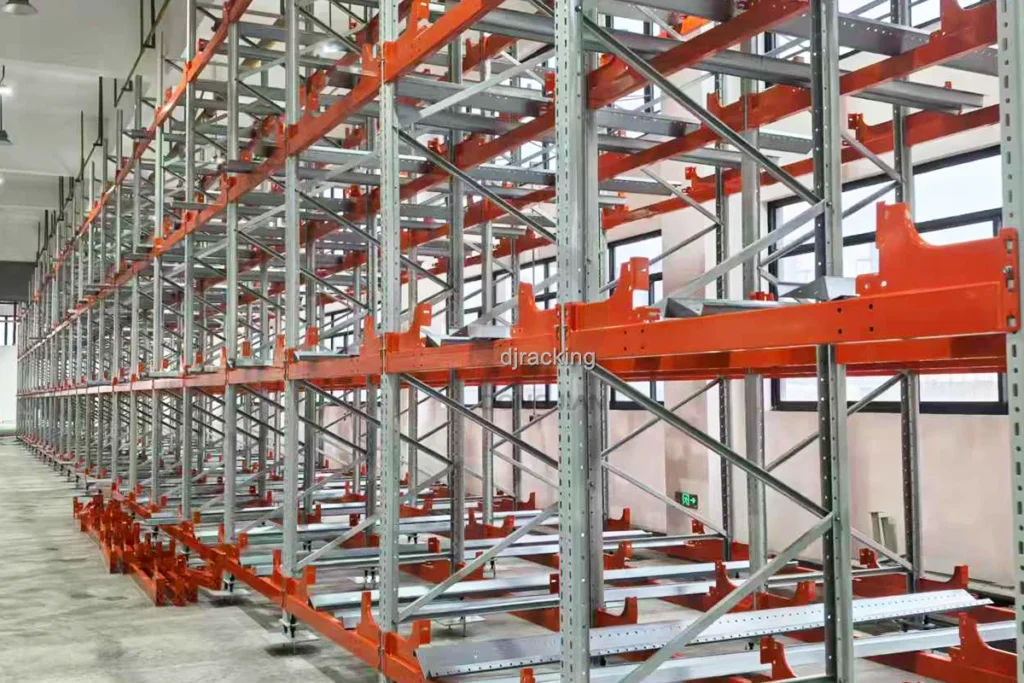

Project Overview
This project was delivered for an industrial warehouse in the United Arab Emirates, where the customer required a high-density storage solution for medium-weight palletized goods.
By implementing a four-way shuttle racking system, the warehouse significantly improved space utilization and storage efficiency within the existing facility.
Project Specifications
- Location: United Arab Emirates
- Industry: Industrial Storage / Distribution
- Warehouse Area: 1,400 m²
- System Type: Four-Way Shuttle Racking System
- Racking Height: 5.4 m
- Storage Levels: 4 levels
- Total Storage Positions: 722 locations
- Load Capacity: Approx. 1 ton per position
Customer Challenges
The customer faced several warehouse operation challenges:
- Increasing inventory volume
- Limited available floor space
- Need for higher storage density
- Requirement for faster access to palletized goods
Traditional pallet racking could not efficiently support the customer’s growing storage demand.
Our Solution
We designed a custom four-way shuttle racking system optimized for medium-height industrial storage.
The system allows flexible horizontal and longitudinal shuttle movement, minimizing aisle requirements and maximizing storage density.
Key Design Features
- Four-level dense storage layout
- Optimized rack geometry for 1-ton pallet loads
- Shuttle-compatible rail structure
- Flexible access to all 722 positions
This solution balances storage density with fast goods retrieval.
Structural & Technical Design
The system was engineered to ensure stable operation and long-term durability.
Technical Parameters
- Total height: 5.4 meters
- Levels: 4 levels
- Storage positions: 722
- Load capacity: approx. 1 ton per location
The structure is designed for medium-heavy industrial goods and daily high-frequency operations.
Key Project Highlights
- High-density storage within a 1,400 m² warehouse
- Four-way shuttle movement for flexible access
- Reduced forklift aisle requirements
- Improved space utilization
- Scalable system for future expansion
Results & Operational Value
After implementation, the customer achieved:
- Increased storage capacity
- Faster goods handling
- Reduced labor intensity
- Improved warehouse organization
The warehouse now supports stable and efficient inventory operations.
Why This Project Matters
This project demonstrates our ability to deliver practical four-way shuttle storage solutions for industrial warehouses where both density and efficiency are essential.
By combining intelligent shuttle technology with optimized rack design, the system provides a scalable and reliable storage solution.
