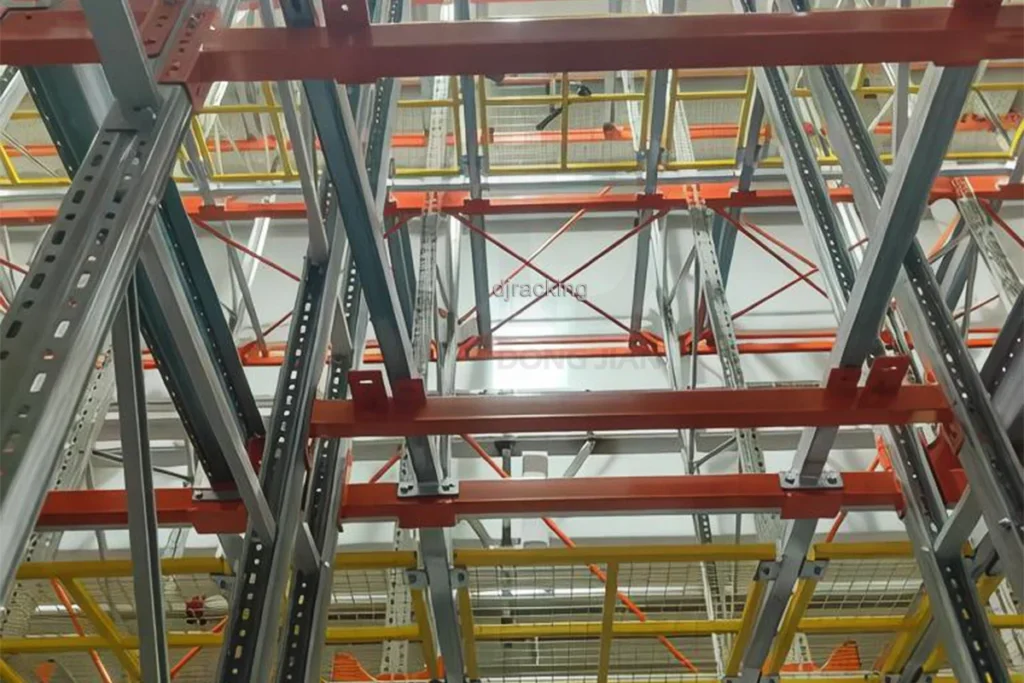

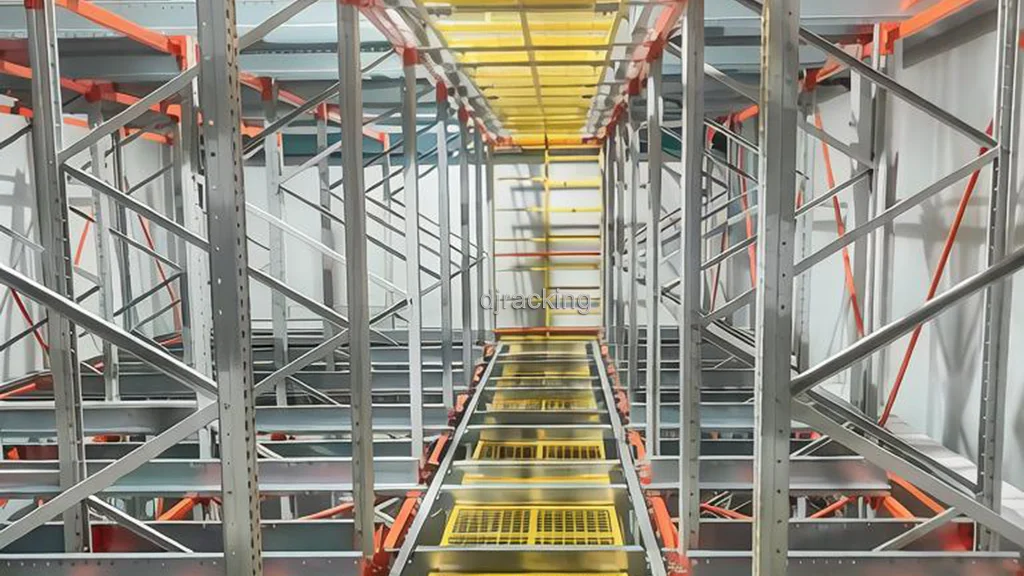

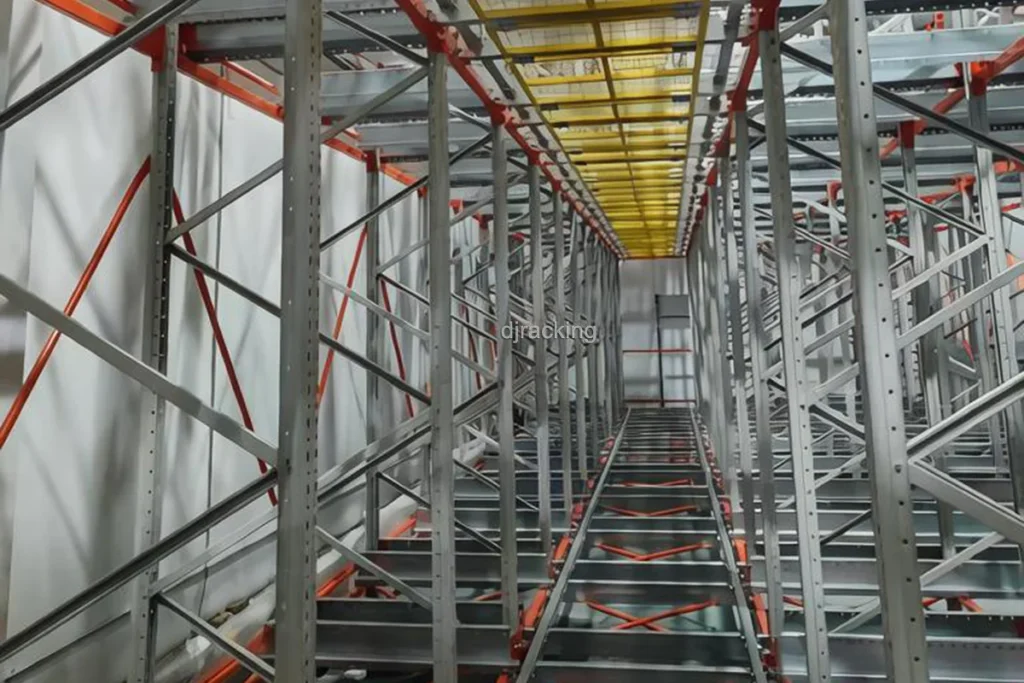

Project Overview
This project was implemented for a manufacturing warehouse in Vietnam where the customer needed to maximize storage capacity within a limited warehouse footprint.
By adopting a four-way shuttle racking system, the warehouse achieved high-density pallet storage while maintaining flexible and efficient pallet handling.
Project Specifications
- Location: Vietnam
- Industry: Manufacturing
- Warehouse Area: 320 m²
- System Type: Four-Way Shuttle Racking System
- Racking Height: 9.6 m
- Storage Levels: 4 levels
- Total Storage Positions: 516 pallet locations
Customer Challenges
The customer faced several operational limitations in the existing warehouse:
- Limited warehouse area restricting storage expansion
- Increasing pallet volume due to business growth
- Need for efficient pallet handling within narrow space
- Requirement for higher storage density without expanding the building
Traditional selective pallet racking could not fully utilize the available vertical space.
Our Solution
We designed a compact high-density four-way shuttle racking system specifically optimized for the customer’s warehouse layout.
The solution allows the shuttle to travel both longitudinally and laterally within the rack structure, enabling flexible access to all pallet positions while minimizing aisle requirements.
Key design features include:
- High-density rack layout maximizing the 320 m² footprint
- Four-way shuttle operation allowing efficient pallet movement
- Optimized rack structure reaching 9.6 meters in height
- Compact design suitable for limited warehouse environments

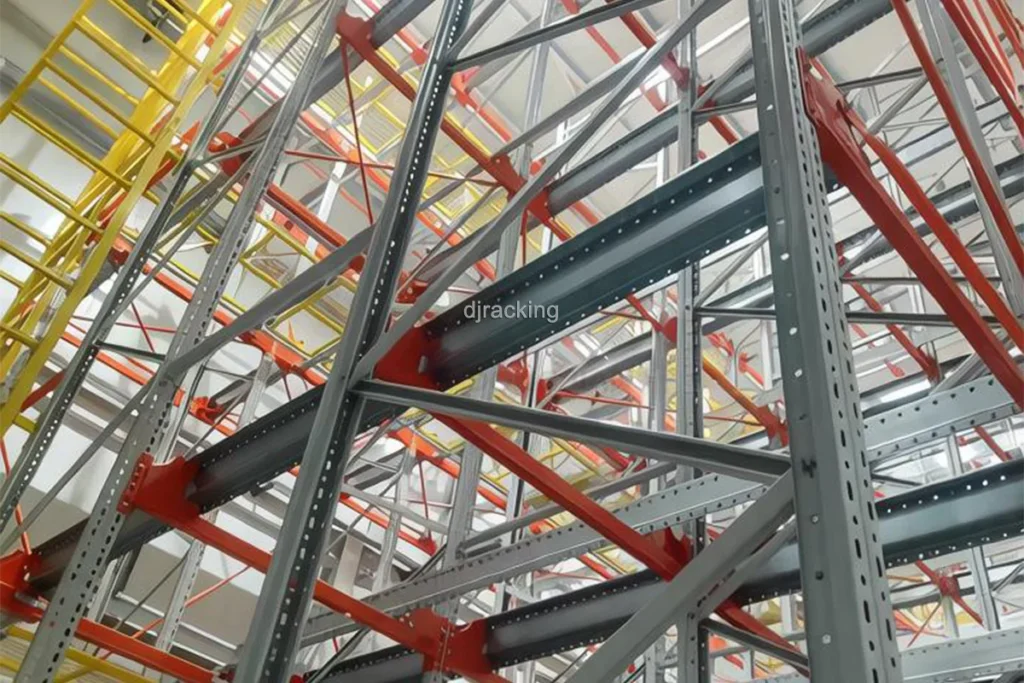

Structural & Technical Design
The racking system was engineered to ensure both stability and operational efficiency.
Key design parameters
- Total racking height: 9.6 meters
- Number of storage levels: 4 levels
- Total pallet capacity: 516 positions
- High-strength rack structure designed for dense pallet storage
- Shuttle-compatible rail system integrated into the rack structure
This configuration enables reliable shuttle operation while maintaining structural integrity.
Key Project Highlights
- High-density pallet storage within a 320 m² warehouse
- Efficient vertical space utilization up to 9.6 meters
- Flexible four-way shuttle operation
- Reduced aisle requirements compared to conventional racking
- Scalable system for future capacity expansion
Results & Operational Value
After the system was implemented, the warehouse achieved significant improvements in storage capacity and operational efficiency.
The customer now benefits from:
- Increased storage density within the existing warehouse
- Faster pallet handling operations
- Reduced manual forklift travel distance
- More organized and efficient warehouse management
The system now serves as the core storage infrastructure supporting the customer’s growing production demand.
Why This Project Matters
This project demonstrates our ability to design high-density four-way shuttle racking solutions for warehouses where space is limited but storage demand continues to grow.
By combining intelligent shuttle technology with optimized rack structure, the system delivers a balanced solution for capacity, efficiency, and scalability.
